Containerized drilling mud dewatering system

Product Details:

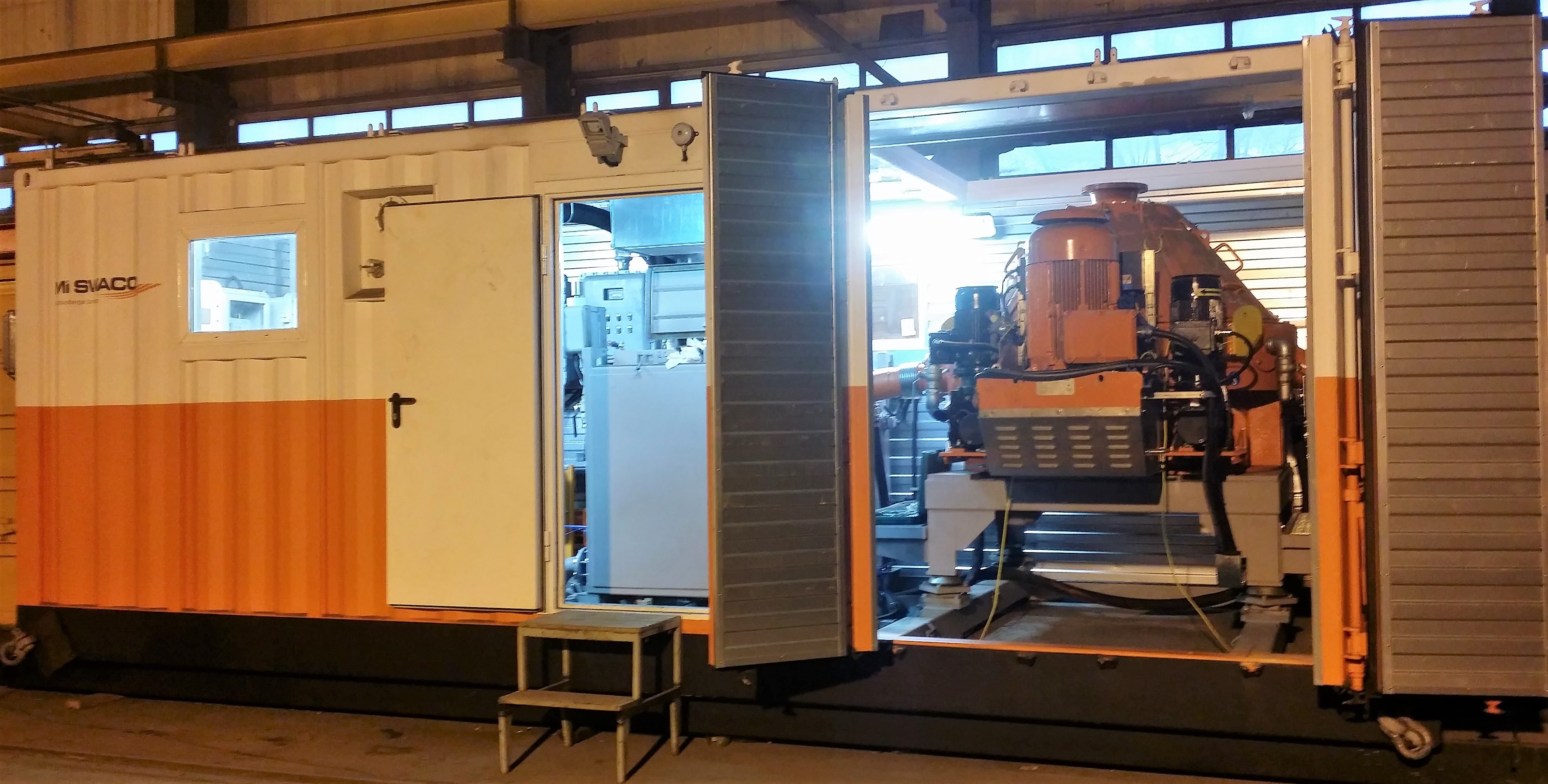

The mobile system is designed for separating drill cuttings into hard (dry sludge) and liquid (fugate) phases.

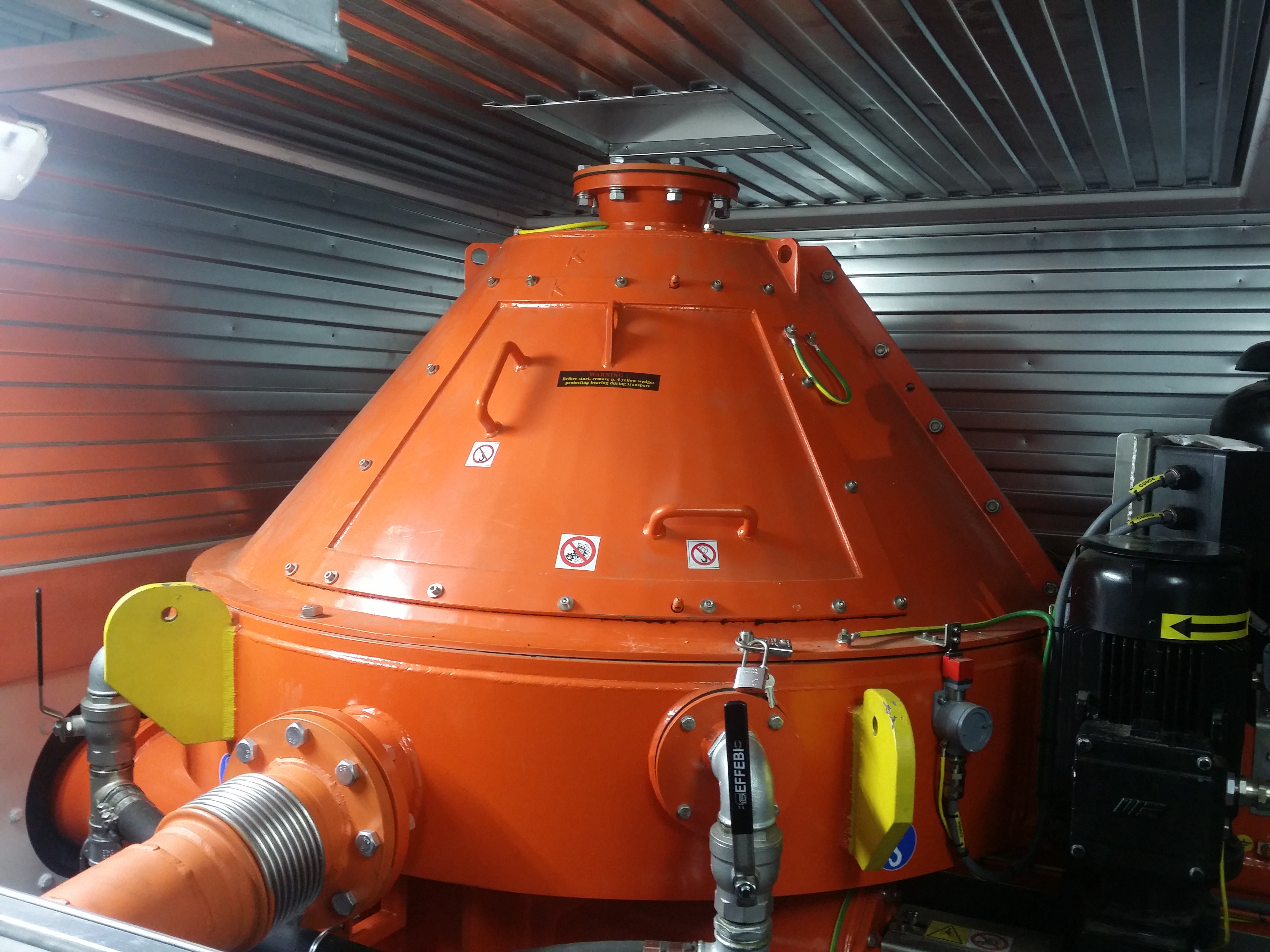

The main element of the mobile system is a compact cuttings dryer for effective separation of the liquid
and solid phases by the powerful centrifugal acceleration.

Climatic modification -45С + 45С. The system is designed for processing drill cuttings with the content
of hydrocarbon-based drilling fluids, including diesel fuel, and is designed to work in close proximity to the storage location of hydrocarbons, zone B-1g.

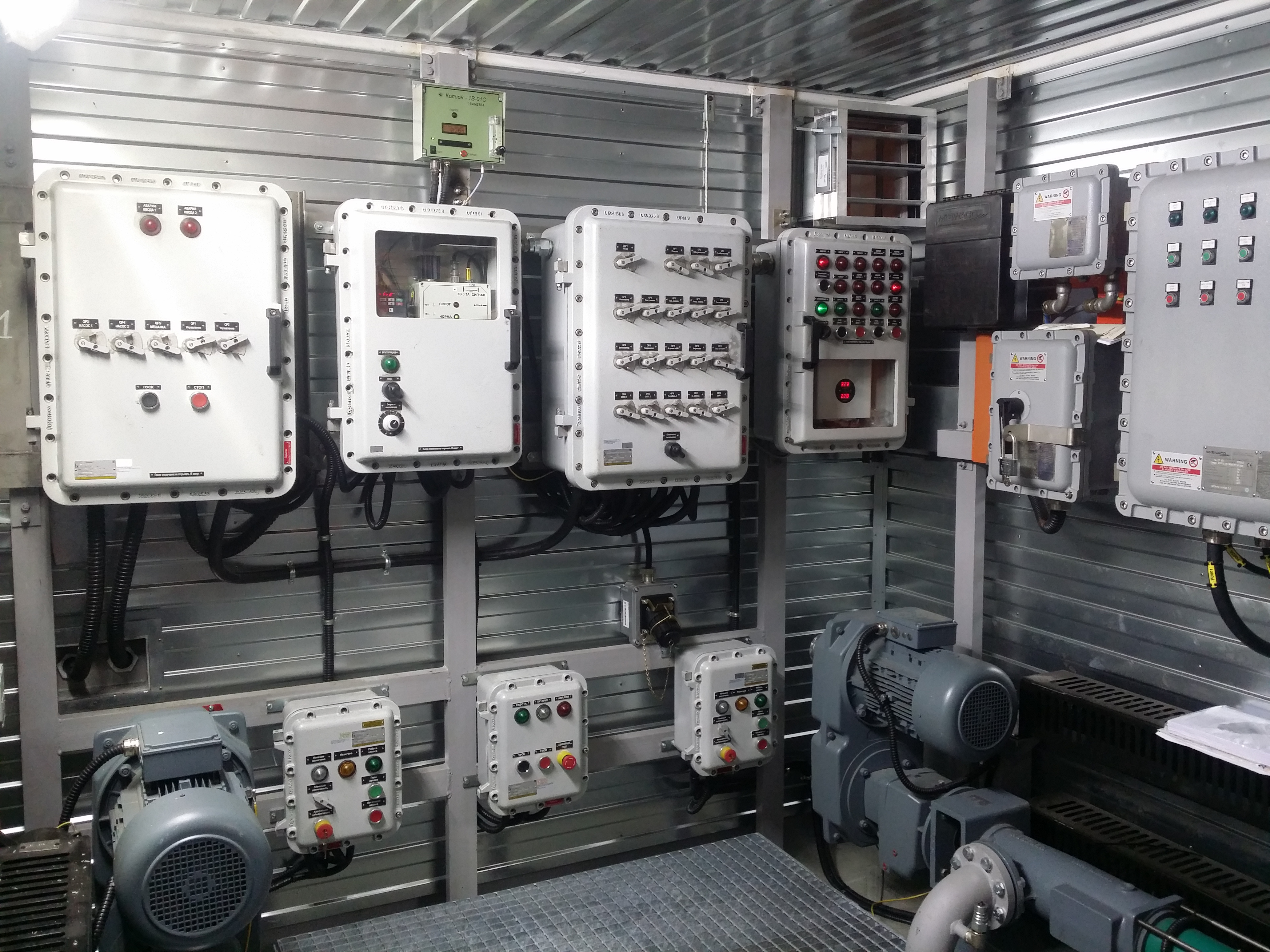

Explosion-proof.

The system can be transported by sea, road and rail transport.
The maximum degree of factory readiness and the minimum time for putting the equipment into operation.

High reliability and productivity of equipment.

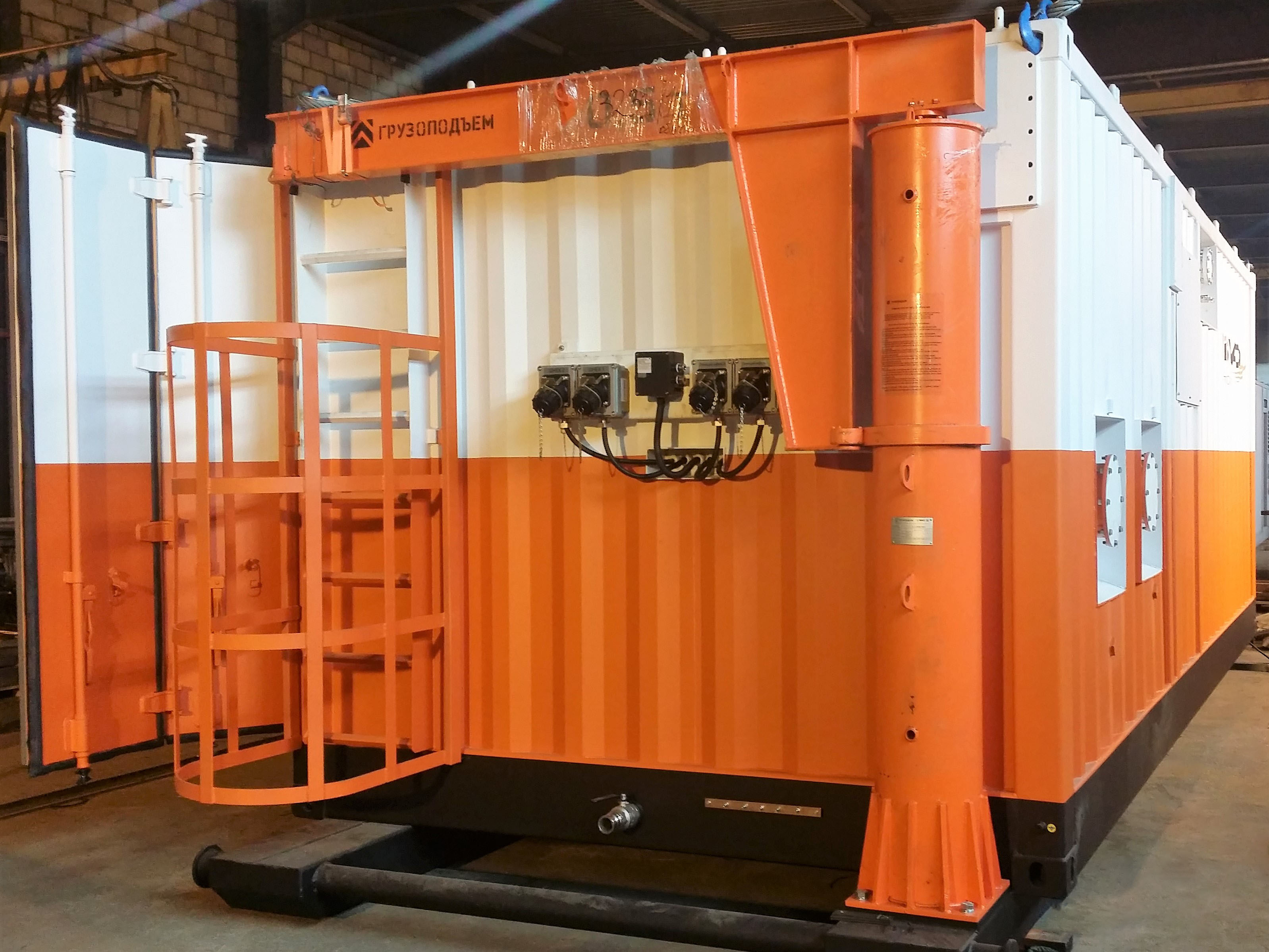

Demountable roof. Rotating console beam, load 500kg.

• External dimension LxWxH 7160x3220x3000 mm
• Max. gross mass 20 000 kg
• Design temperature -40 °C
• Power 140 kW
• Voltage 380В (50 Hz)/440В(60Hz)
• Max. efficiency 60m3/h
